OT803L 80mm Thermal Receipt Printer, USB/Serial/LAN
Product Details
Overview
The OT803L is an 80 mm direct thermal receipt printer with cutter auto-calibration and a noticeably longer service life than the previous generation: the cutter is now rated for 1.5 million cuts and the print head for 150 km of paper.
It prints at 260 mm/s and carries USB, serial and LAN interfaces on every unit, with ESC/POS, JPOS and OPOS compatibility so it drops into most existing POS software without custom work.
Please note: on the network interface the printer uses a static IP address. Set the address with the supplied configuration tool before connecting it to your POS software. Instructions are in the documentation on the bundled flash disk, and in the guides linked below.
Key Features
- 260 mm/s print speed — 576 or 512 dots per line across a 72 mm print width

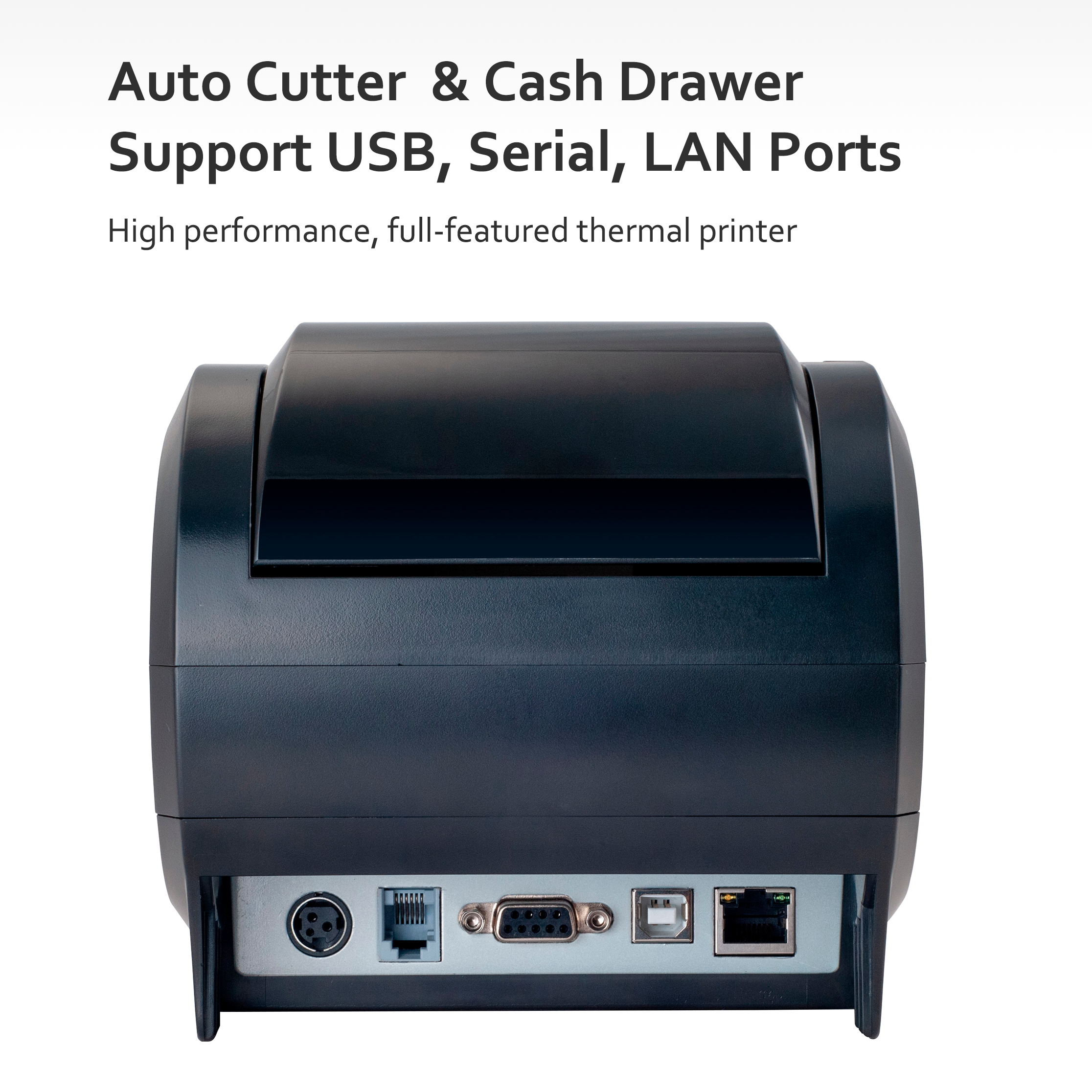

- Three interfaces — USB, serial and LAN on every unit
- Long service life — 1.5 million cutter cuts and a 150 km print head
- Cutter auto-calibration — partial cut, self-correcting
- ESC/POS, JPOS and OPOS — drivers for Windows, Linux, macOS and Android
- SDKs provided — iOS, Android and Windows
- Cash-drawer port — DC 24 V / 1 A drawer control
Downloads

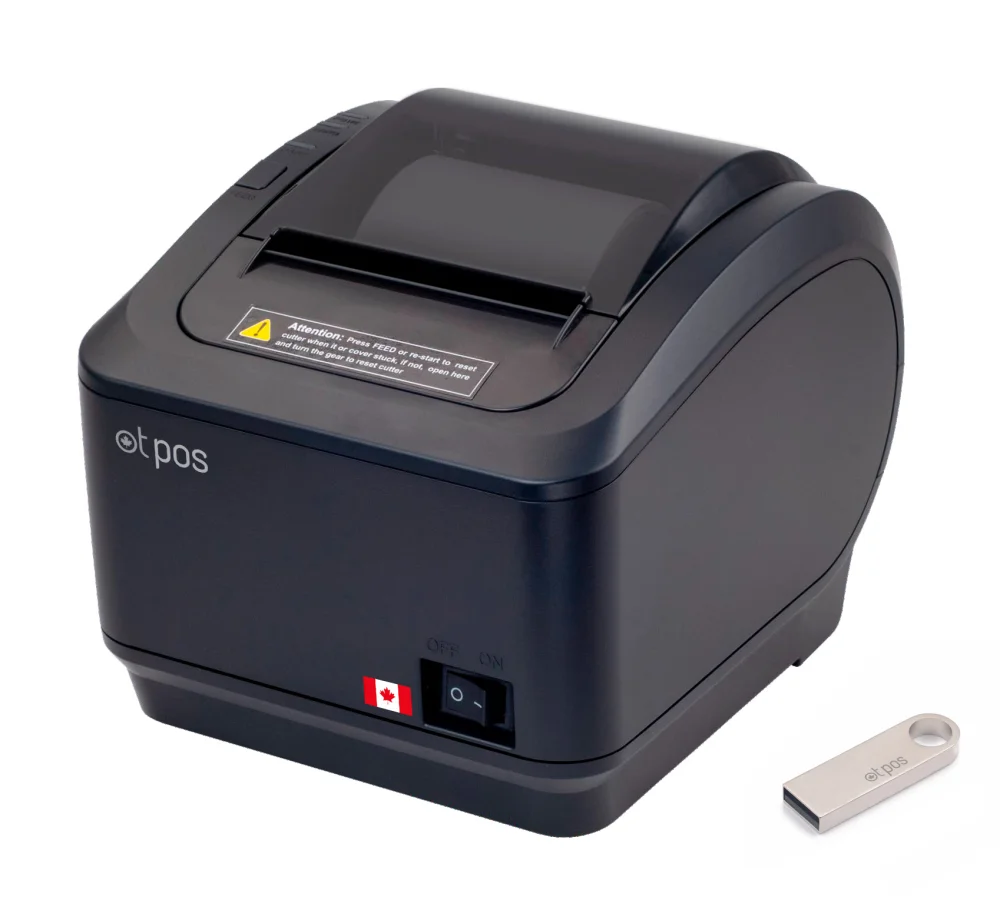

Flash disk contents — driver, SDK, user manual and configuration tool
- OT803L thermal receipt printer user manual
- Thermal receipt printer driver installation
- Setting up the printer IP address
- How to set a static IP address
Specifications
| Printing method | Direct thermal |
|---|---|

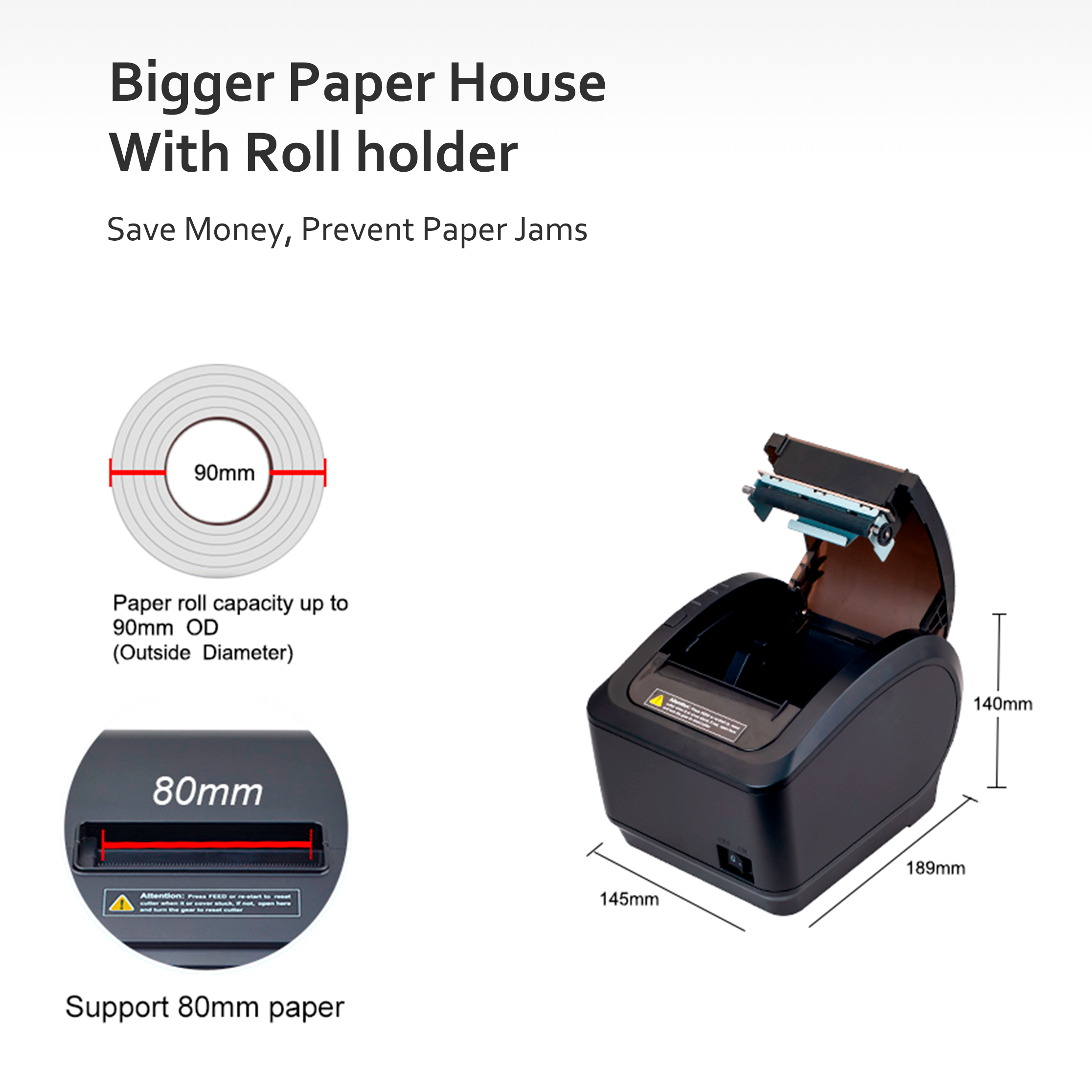

| Media width | 79.5 ± 0.5 mm, roll diameter Φ80 mm |
| Print width | 72 mm |
| Column capacity | 576 or 512 dots per line |
| Print speed | 260 mm/s |
| Interfaces | USB + serial + LAN |
| Line spacing | 3.75 mm, adjustable by command |
| Character size | ANK Font A 1.5 x 3.0 mm (12 x 24 dots), Font B 1.1 x 2.1 mm (9 x 17 dots); Chinese and traditional Chinese 3.0 x 3.0 mm (24 x 24 dots) |
| Code pages | PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, Iran II, Latvian, Arabic, PT151 (1251) |
| 1D barcodes | UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, Codabar, CODE93, CODE128 |
| 2D barcodes | QR Code, PDF417 |
| Input buffer | 64 KB |
| NV flash | 256 KB |
| Power adapter | Input AC 110-240 V, 50-60 Hz. Output DC 24 V / 2.5 A |
| Printer input | DC 24 V / 2.0 A |
| Cash drawer | DC 24 V / 1 A |
| Auto cutter | Partial cut, 1.5 million cuts |
| Print head life | 150 km |
| Emulation | ESC/POS, JPOS, OPOS |
| Drivers | Windows, Linux, macOS, Android |
| SDK | iOS, Android, Windows |
| Dimensions | 189.15 x 145.35 x 139.7 mm (D x W x H) |
| Weight | 1.12 kg |
| Environment | Operating 0 to 45 °C at 10-80% RH, storage -10 to 60 °C at 10-90% RH |
OT803L 80mm Thermal Receipt Printer, USB/Serial/LAN
- 80 mm direct thermal receipt printer at 260 mm/s with an auto cutter
- USB, serial and LAN on every unit, with ESC/POS, JPOS and OPOS support
- 1.5 million cut cutter life and a 150 km print head; uses a static IP on LAN
